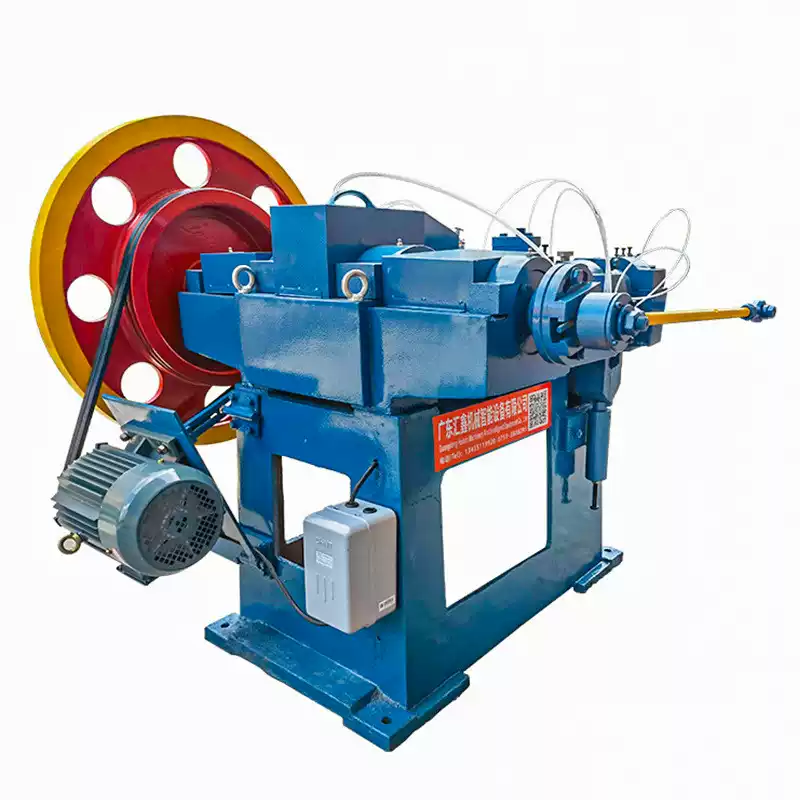

China Factory Automatic Multi Functional Nail Making Machine

Jinxuan nail making machine is an efficient and stable nail making tool, with carefully designed key components, square punch rod slider with lining plate anti deviation cap, arc gear wear-resistant and low-noise, and through axis knife tire material saving and durable, ensuring precise size and high pass rate of each nail; It supports Q195/Q235 wire rod and scrap steel plate edge processing, with fast and labor-saving finished wire drawing, low cost and high profit of nail making from old materials, and fully automatic wire feeding combined with high-speed transmission system, which can achieve stable high yield. In addition to producing various types of nails, the drawn wire can be expanded for the production of grid sheets, chicken cages, greenhouses, and other products.

    description1

    Production description

    Nail Making Machine
    Parameters unit Z94-6C Z94-5C Z94-4C Z94-3C Z94-2C Z94-1C
    Max Diameter mm 6 5 4.5 3.1 2.8 1.6
    Min Diameter mm 3.1 3.1 2.8 1.8 1.2 0.9
    Max Length mm 250 130 100 75 50 25
    Min Length mm 80 80 50 30 16 9
    design prod. Unit/min 120 220 260 300 380 450
    Power KW 7.5 7.5 4.5 3 2.2 1.5
    Weight Kg 2300 2000 1900 1100 950 800


    nail making machine)(1)

    The nail making machine is equipped with a brand-new high-strength clock needle, a brand-new spiral alloy sleeve, and a bifurcated lubricating oil passage. The super strong hardness and precision, as well as the fully lubricated oil passage, ensure the stability of the machine during high-speed operation and production. Other parts adopt computerized automatic oiling, which reduces oil waste compared with the past. The transmission uses Gleason spiral bevel gears, which ensures high-speed stability and reduces noise. The high-precision new ternary convex ensures the qualification rate of each product.

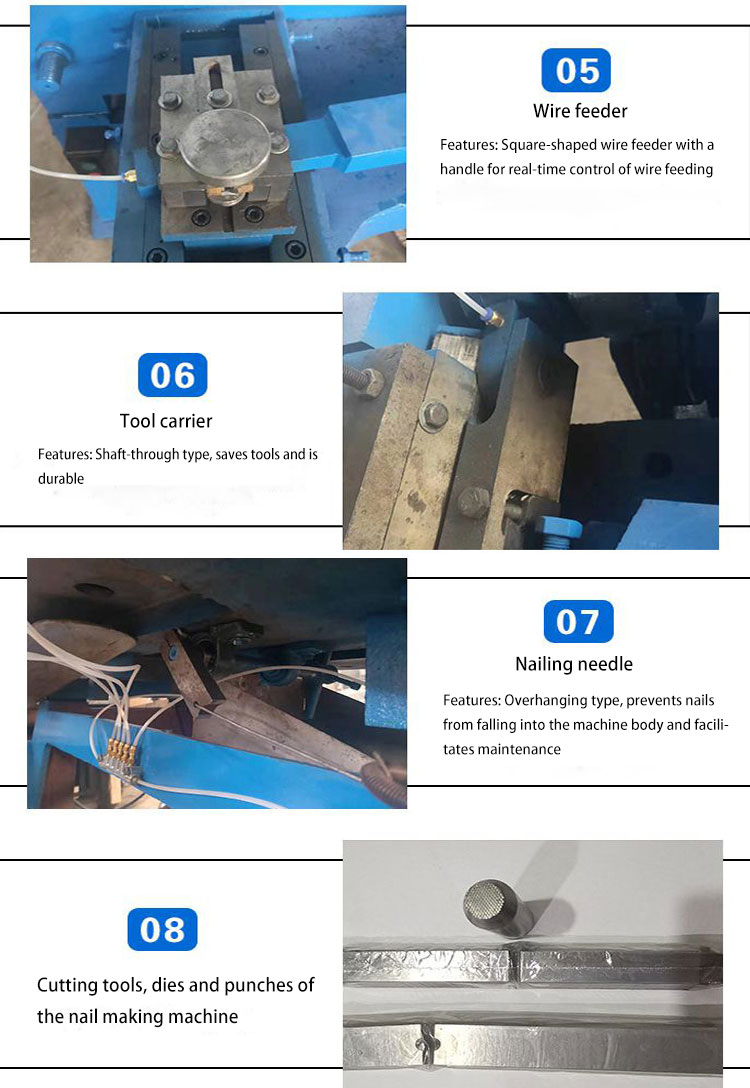

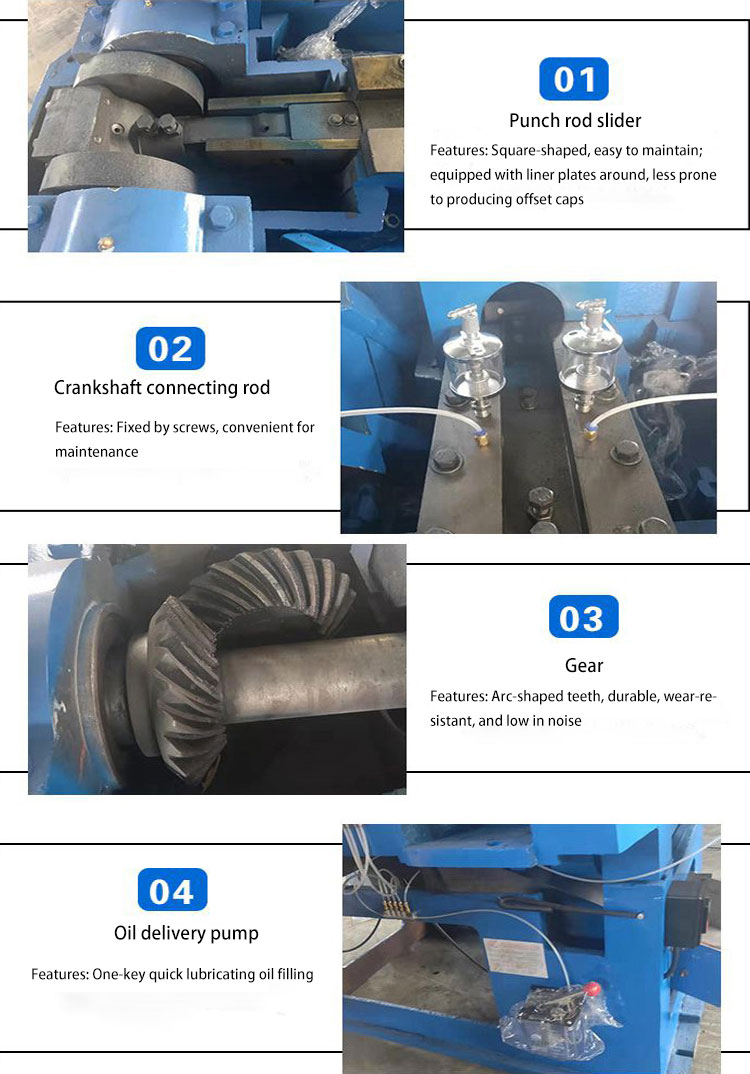

    makenail machine makenail machinenail making machine (2)

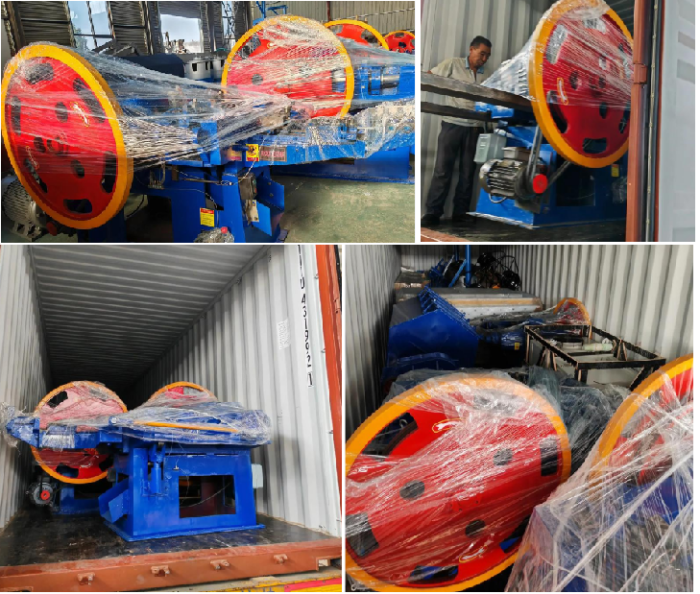

    Packaging & Shipping

    nail making machine (5)(1)
